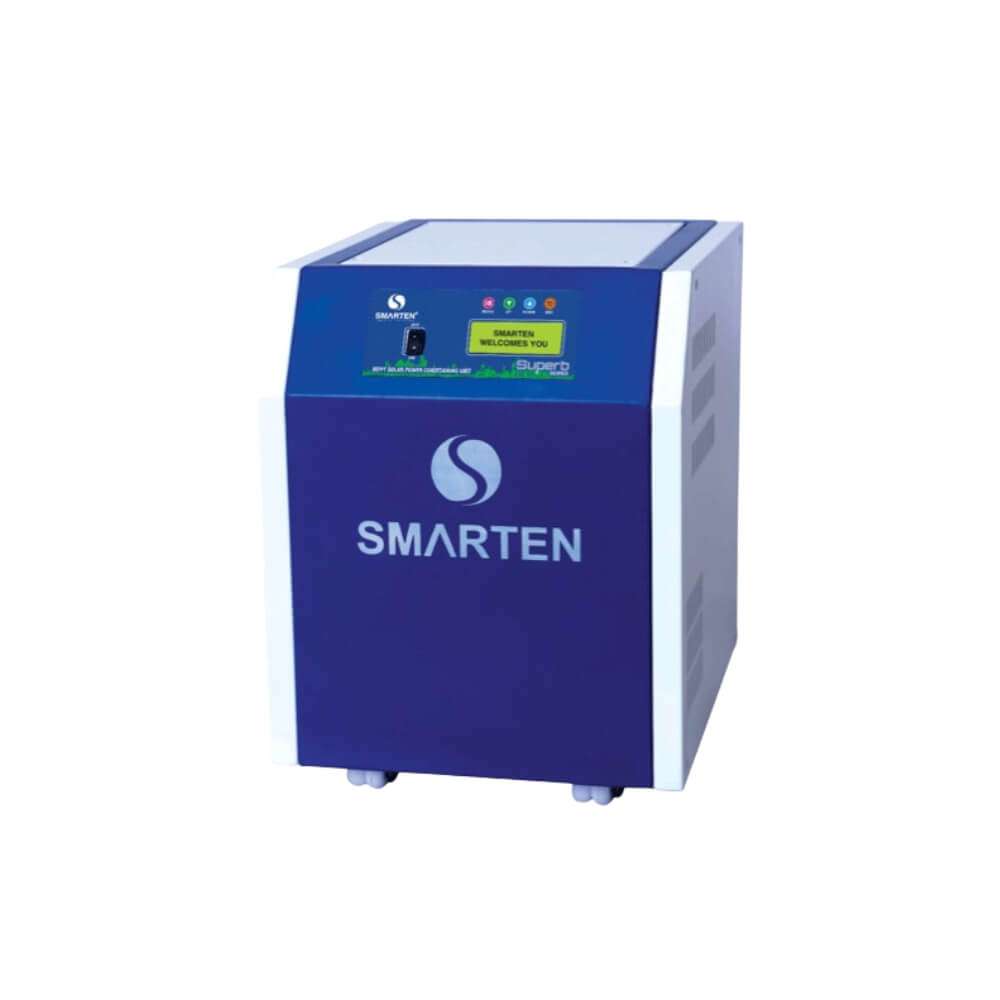

Smarten Superb 4KVA Solar MPPT Hybrid Inverter in Bangladesh
The Smarten Superb 4KVA Solar MPPT Hybrid Inverter is now available at a discounted price with free delivery across Bangladesh and free installation in Dhaka. Cash on delivery is available in Dhaka under specific conditions.
Product Description:
- Brand: Smarten
- Capacity: Solar 4000VA, 2500Watts
- Waveform: Pure Sine Wave
- Warranty: 24 Months
পণ্যটি অর্ডার করার আগে বিক্রয়ের নিয়ম ও শর্তাবলী পড়ুন এবং ফোন করে পণ্যের বিশদ বিবরণ সহ আপনার নির্দিষ্ট স্থানে পণ্যটি সরবরাহ করা সম্ভব হবে কি না তা জেনে নিন। Mob: 01682-846785, Whats App: +8801733-436965,
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Benefits of Installing Smarten Superb 4KVA Solar MPPT Hybrid Inverter in Bangladesh:
Installing a Smarten Superb 4KVA Solar MPPT Hybrid Inverter in Bangladesh offers significant benefits by ensuring a reliable and continuous power supply, essential in a country prone to frequent power outages. This advanced inverter maximizes the efficiency of solar panels through MPPT technology, translating to reduced electricity bills and a more sustainable energy footprint. Additionally, its hybrid capability allows seamless integration with the existing power grid and battery storage, providing flexibility and resilience in energy management for both residential and commercial users.
Details of Smarten Superb 4KVA Solar MPPT Hybrid Inverter:
The Superb Solar PCU is a solar inverter that provides a stable power supply. It includes features such as an LCD screen and an Advanced DSP Controller. When used with Smarten’s solar panels, the Superb PCU is reportedly 30% more efficient than standard PCUs. It offers four battery depth discharge options to meet various power requirements. Additional features include low voltage charging, a 10 ms change over time, and triple protection, eliminating the need for a separate power backup system.
Technical Specifications and Features of the Smarten Superb 4KVA Solar MPPT Hybrid Inverter:
The Smarten Superb 4KVA Solar MPPT Hybrid Inverter is available for purchase at the listed price, which includes only the inverter. Free delivery is offered across Bangladesh via courier. In Dhaka City, a technician will handle deliveries at no additional cost, with cash on delivery available under specific terms and conditions.
Product Description:
- Brand: Smarten
- Model: Superb 4KVA
- Capacity: 4000VA
- Rated Power: 2500 watts
- Volt. System: 48 Volt
- Waveform: Pure Sine Wave
- Maximum Panel Capacity (W): 3000Wp
- Nominal Battery bank voltage: 48V
- Product Category: Off-Grid
- Applications: As Per Requirement.
- Warranty: 24 Months
- Mfg. By: Smarten Power Systems (Pvt) Ltd.
- Origin: India.
Features of Superb Series:
- The wide input range of PV voltage.
- Graphical display for user interface.
- Pure sine wave output supply.
- 30% increased efficiency.
- Integrated independent battery charger to recover deeply discharged batteries.
- Keypad interface for manual settings such as grid charging enable/disable, battery selection, depth of discharge, etc.
- Smart battery charging up to 90V mains input voltage.
- Changeover time of less than 10 milliseconds.
- Compatible with various types of batteries (LA/TUB/SMF).
- Comprehensive protection against short circuits, overload, wiring faults, high input voltage, reverse connection, and over-temperature.
- Protection against reverse PV and high PV.
- 100% solar priority and smart sharing with solar and grid.
- Grid charging enable/disable option for reduced electricity bill.
- Offers Smart UPS/WUPS switch options.
- Changeover time is less than 10 milliseconds.
Product Specification:
Mains Input Mode:
- Mains AC Input Range (UPS Mode): 175VAC-265AVC ± 10V
- Mains AC Input Range (WUPS Mode): 90VAC-295AVC ± 10V
- Input Frequency Range: 48Hz to 52Hz
Battery:
- Boost Charging Voltage for LA Battery: 56V ± 0.2V
- Boost Charging Voltage for Tubular Battery: 58V ± 0.2V
- SMF Battery: 58V ± 0.2V
- Charging Current By Grid: 15A ± 3A
- Grid Charging Enable/Disable Option: YES
Backup Mode:
- Output Voltage: 220VAC +5% -10% (Until Battery Low Alarm)
- Low Battery Cut: 42.4V ± 0.4V
- Change Over Time UPS / WUPS Mode: 10msec / 25msec
- Frequency: 50Hz ± 0.2Hz
Protections:
- Overload in Backup Mode: Available
- Short Circuit in Backup Mode: Available
- Short Circuit in Mains Mode: Available
- Reverse Battery: Available
Solar Charge Controller:
- Solar Controller Charge Type: MPPT
- Maxi Panel Wattage Can Be Connected: 3000W
- Maxi PV Voltage: 135A
- Maximum Battery Current: 50Amp
- Efficiency: 93%
- Reverse PV Protection / Current Flow to PV: Available
- Option for Grid and Battery Priority: Available, with user-friendly settings.
- Sharing of Current When PV and Grid Both are Available: If PV Power is Not Sufficient Enough to Charge the Battery, the System will Start Sharing Battery Charging from PV and Grid.
- DOD Definition (Depth of Discharge) Mains will be Connected when the Battery Voltage Reach at Defined Value of the Battery Voltage.
- DOD: 20% if Battery Voltage is 50.0V
30% if Battery Voltage is 48.0V
40% if Battery Voltage is 46.0V
50% if Battery Voltage is 44.0V
Display and Alarms:
- LCD Fault / Protection Status Display: Mains Fuse Blown / MCB Trip, Short Circuit, Overload, Battery Low, High Temperature, Back Feed
- Buzzer: Mains Fuse Blown / MCB Trip, Short Circuit, Overload, Battery Low, High Temperature, Back Feed
Weight and Dimensions:
- Dimensions in mm:
- Weight:
