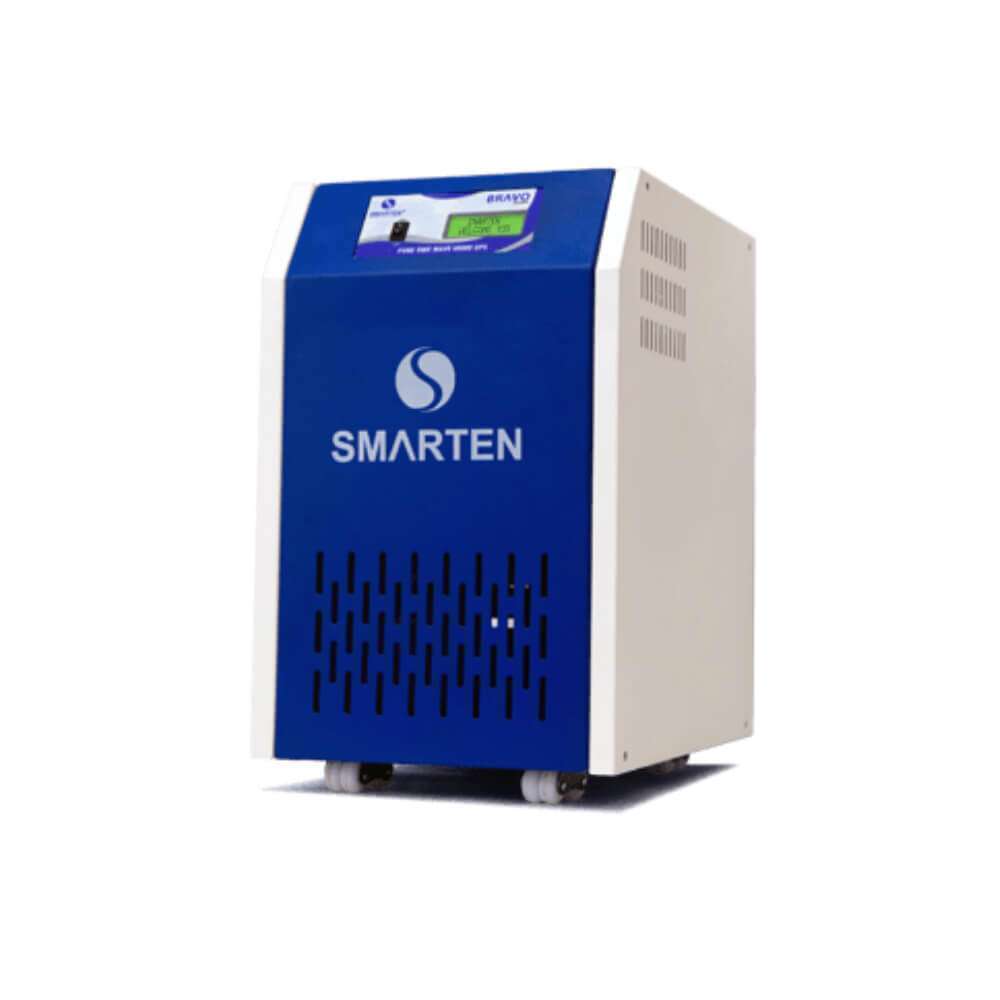

Smarten Superb PCU 10KVA Solar Hybrid Inverter in Bangladesh
The Smarten Superb PCU 10KVA Solar Hybrid Inverter is now offered at a reduced price with free delivery across Bangladesh and free installation in Dhaka. Cash on delivery is available in Dhaka under certain conditions.
Product Description:
- Brand: Smarten
- Capacity: Solar 10000VA, 7000Watts
- Waveform: Pure Sine Wave
- Warranty: 24 Months
পণ্যটি অর্ডার করার আগে বিক্রয়ের নিয়ম ও শর্তাবলী পড়ুন এবং ফোন করে পণ্যের বিশদ বিবরণ সহ আপনার নির্দিষ্ট স্থানে পণ্যটি সরবরাহ করা সম্ভব হবে কি না তা জেনে নিন। Mob: 01682-846785, Whats App: +8801733-436965,
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Smarten Superb PCU 10KVA: The Ultimate Solution for Reliable Solar Power in Bangladesh
The Smarten Superb PCU 10KVA stands as the ultimate solution for reliable solar power in Bangladesh, offering exceptional efficiency and robust performance tailored to the region’s energy demands. With its advanced technology, this power conditioning unit ensures seamless integration with solar panels, providing uninterrupted electricity and significantly reducing dependency on the grid. Perfect for both residential and commercial applications, the Smarten Superb PCU 10KVA not only promotes sustainable living but also delivers cost-effective energy solutions, making it an invaluable asset in the country’s pursuit of renewable energy.
Details of Smarten Superb PCU 10KVA Solar Hybrid Inverter:
The Superb Solar PCU is a solar inverter designed to provide a stable power supply. It includes features such as an LCD screen and an Advanced DSP Controller. According to reports, when used with Smarten’s solar panels, the Superb PCU is 30% more efficient than standard PCUs. It offers four battery depth discharge options to accommodate various power needs. Additional features include low voltage charging, a 10 ms change over time, and triple protection, which eliminates the need for a separate power backup system.
Technical Specifications and Features of the Smarten Superb PCU 10KVA Solar Hybrid Inverter:
The Smarten Superb PCU 10KVA Solar Hybrid Inverter is available at the listed price, which includes only the inverter. Free delivery is provided across Bangladesh via courier. In Dhaka City, deliveries are handled by a technician at no extra cost, with cash on delivery available under specific terms.
Product Description:
- Brand: Smarten
- Model: Superb 10KVA
- Capacity: 10000VA
- Rated Power: 7000 watts
- Volt. System: 120 Volt
- Waveform: Pure Sine Wave
- Maximum Panel Capacity (W): 8000Wp
- Nominal Battery bank voltage: 120V
- Product Category: Off-Grid
- Applications: As Per Requirement.
- Warranty: 24 Months
- Mfg. By: Smarten Power Systems (Pvt) Ltd.
- Origin: India.
Features of Superb Series:
- The wide input range of PV voltage.
- Graphical display for user interface.
- Pure sine wave output supply.
- 30% increased efficiency.
- Integrated independent battery charger to recover deeply discharged batteries.
- Keypad interface for manual settings such as grid charging enable/disable, battery selection, depth of discharge, etc.
- Smart battery charging up to 90V mains input voltage.
- Changeover time of less than 10 milliseconds.
- Compatible with various types of batteries (LA/TUB/SMF).
- Comprehensive protection against short circuits, overload, wiring faults, high input voltage, reverse connection, and over-temperature.
- Protection against reverse PV and high PV.
- 100% solar priority and smart sharing with solar and grid.
- Grid charging enable/disable option for reduced electricity bill.
- Offers Smart UPS/WUPS switch options.
- Changeover time is less than 10 milliseconds.
Product Specification:
Mains Input Mode:
- Mains AC Input Range (UPS Mode): 175VAC-265AVC ± 10V
- Mains AC Input Range (WUPS Mode): 90VAC-295AVC ± 10V
- Input Frequency Range: 48Hz to 52Hz
Battery:
- Boost Charging Voltage for LA Battery: 140V ± 0.4V
- Boost Charging Voltage for Tubular Battery: 145V ± 0.4V
- SMF Battery: 145V ± 0.4V
- Charging Current By Grid: 15A ± 3A
- Grid Charging Enable/Disable Option: YES
Backup Mode:
- Output Voltage: 220VAC +5% -10% (Until Battery Low Alarm)
- Low Battery Cut: 104V ± 0.4V
- Change Over Time UPS / WUPS Mode: 10msec / 25msec
- Frequency: 50Hz ± 0.2Hz
Protections:
- Overload in Backup Mode: Available
- Short Circuit in Backup Mode: Available
- Short Circuit in Mains Mode: Available
- Reverse Battery: Available
Solar Charge Controller:
- Solar Controller Charge Type: MPPT
- Maxi Panel Wattage Can Be Connected: 8000W
- Maxi PV Voltage: 350A
- Maximum Battery Current: 50Amp
- Efficiency: 93%
- Reverse PV Protection / Current Flow to PV: Available
- Option for Grid and Battery Priority: Available, with user-friendly settings.
- Sharing of Current When PV and Grid Both are Available: If PV Power is Not Sufficient Enough to Charge the Battery, the System will Start Sharing Battery Charging from PV and Grid.
- DOD Definition (Depth of Discharge) Mains will be Connected when the Battery Voltage Reach at Defined Value of the Battery Voltage.
- DOD: 20% if Battery Voltage is 125V ± 0.2V
30% if Battery Voltage is 120V ± 0.2V
40% if Battery Voltage is 115V ± 0.2V
50% if Battery Voltage is 110V ± 0.2V
Display and Alarms:
- LCD Fault / Protection Status Display: Mains Fuse Blown / MCB Trip, Short Circuit, Overload, Battery Low, High Temperature, Back Feed
- Buzzer: Mains Fuse Blown / MCB Trip, Short Circuit, Overload, Battery Low, High Temperature, Back Feed
Weight and Dimensions:
- Dimensions in mm:
- Weight:
